Peppol v1
The Peppol v1 envelope, its use of the General JWE Serialization Syntax, and the OP_RETURN arguments it publishes.
Current SDK format generation. This page documents the envelope format the mintBlue SDK writes today. The open SDX Protocol specifies a later generation of this format; the two are not wire-compatible. Read the open specification
Generations sets out which of the two documents applies to the code you installed.
The Peppol envelope follows the General JWE Serialization Syntax of the JSON Web Encryption standard (JWE) specified in RFC 7516
JWE is chosen because
- support for multiple recipients
- support for multiple encryption algorithms
- support for additional authenticated data

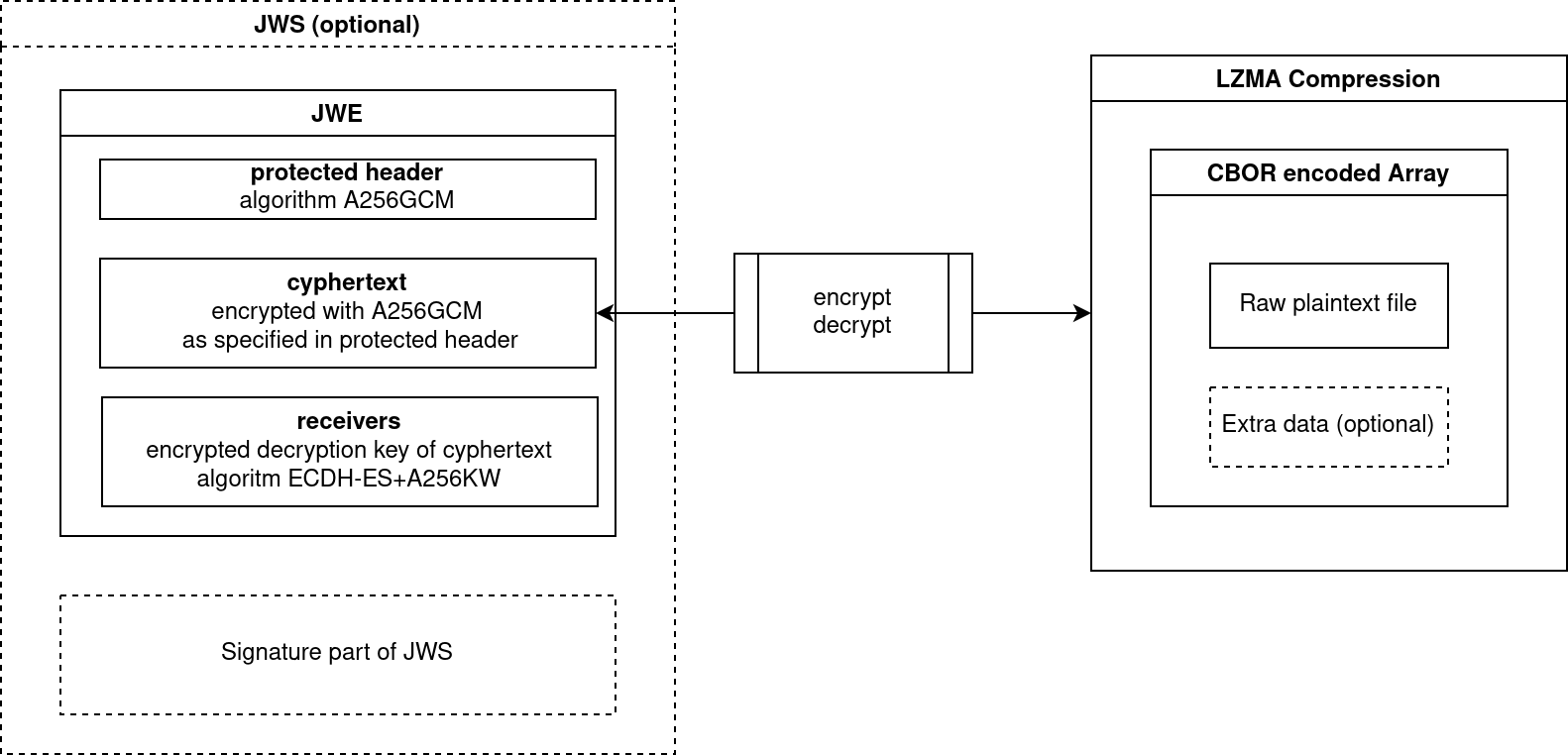

High Level Overview
Creating a Peppol V1 Envelope with createTransaction
| Argument | Type | Description |
|---|---|---|
| version | number | 1 |
| value | Buffer | raw file contents |
| pubKey | string | JWK | ES256 Public key of the receiver, either as JWK or as uncompressed hex string |
| options | Object | |
| options.extra | Buffer | Extra data to include in the encrypted payload |
| signingKey | JWK | Optional key to sign the envelope |
General JWE Serialization Syntax
| Field | Description | Use in Peppol v1 |
|---|---|---|
| protected | integrity protected header | declares algorithm A256GCM |
| unprotected | header without integrity protection | |
| iv | initialization vector | used by A256GCM |
| aad | additional authenticated data | unused currently |
| ciphertext | encrypted payload | encrypted content. contains compressed file and extra dataencrypt(lzma(cbor([file, extraData])) |
| tag | authentication tag | |
| recipients | array containing information about a single recipient | contains information for the receiver to be able to decrypt the ciphertext |
OP_RETURN Format
The OP_RETURN arguments are structured as follows:
| Index | Description | Value |
|---|---|---|
| 0 | Protocol ID | "mB:peppol" |
| 1 | Peppol Envelope | Serialized JWE/JWS |
| 2 | Receiver pubkey | Public key of the receiver, intented for quick indexing |
